Automation in Aws – Part 2 – Cyber Security Shots

To Illustrate Automation, I would be using the EventBridge events along with Automation document to stop the EC2 as soon as it started.

High Level Plan

Create Master account EventBus and Configure child accounts EventBridge to send events to the master account
Configure Master account to run Automation on Child accounts.
Create EventBridge rule in Master account to execute the Automation

Configure EventBridge child accounts to send events to the master account

Low Level Plan

Create EventBus in Master account and attach policy in accept events from the child accounts.
Create rule in child account to send events to Master account

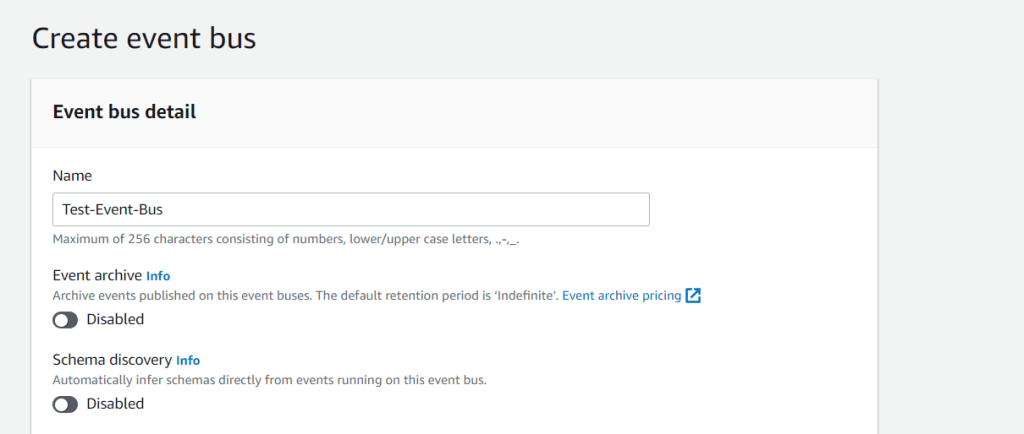

Create Event Bus

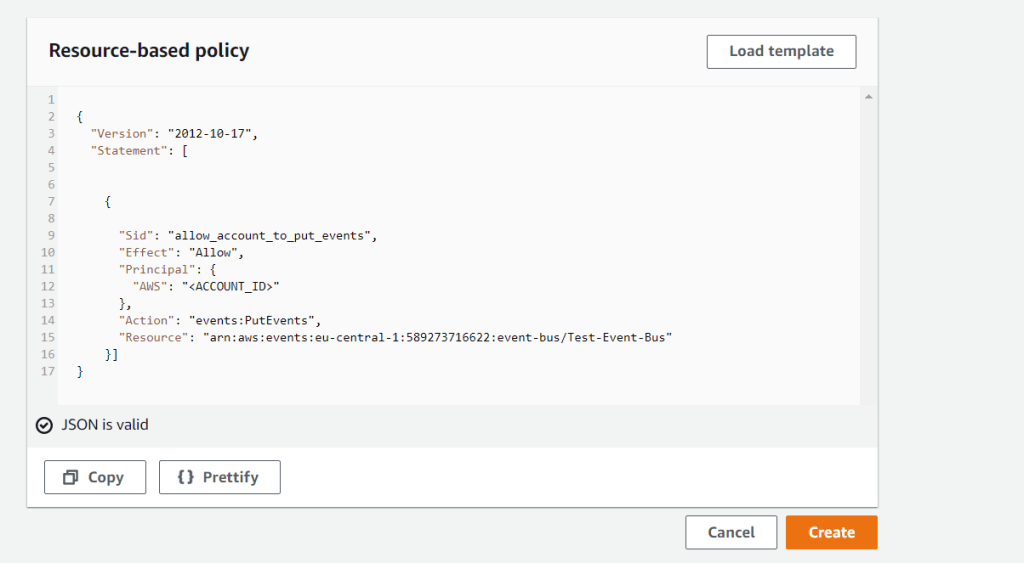

In the Account ID , Replace it with the child account ID

Copy the ARN of the EventBus.

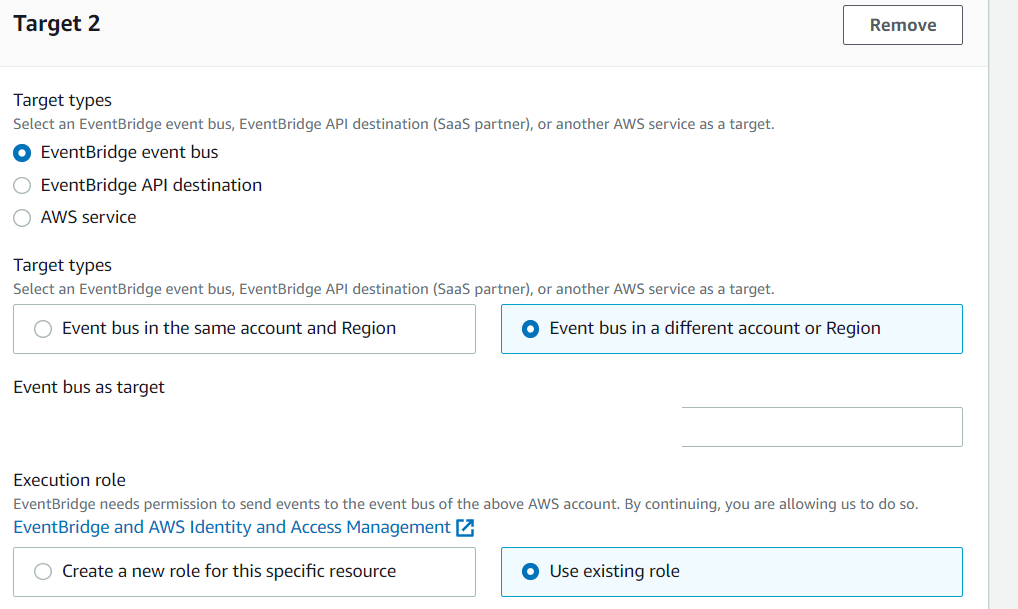

In child account, Create Master account EventBus as the target, paste the ARN taken from the previous step.

Configure Master account to run Automation on Child accounts.

Low Level Plan

Create IAM role in the Master and child account.

Use CFT’s in the link’s (link1 and link2) to create the IAM roles

link1 role = To be created in both Master and Child account

link2 role = To be created only in Master account. The role used to run the Automation document.

Create EventBridge rule in Master account to execute as the Automation

Low Level Plan

Create EventBridge rule on the EventBus created in #1

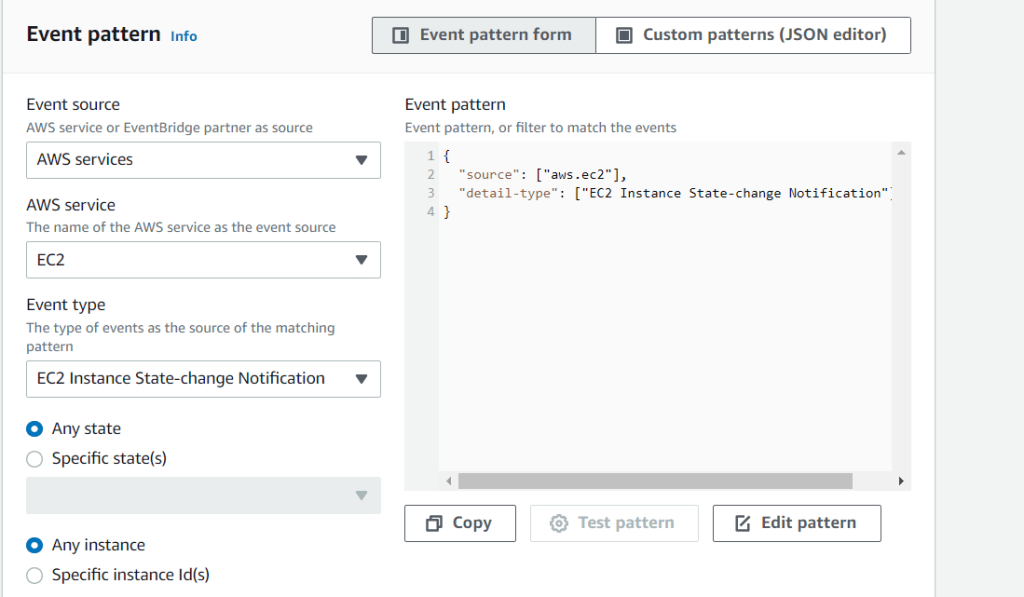

Configure Event Pattern
Configure Target along with the inputs parameters

Choose the Event Pattern based on the requirement

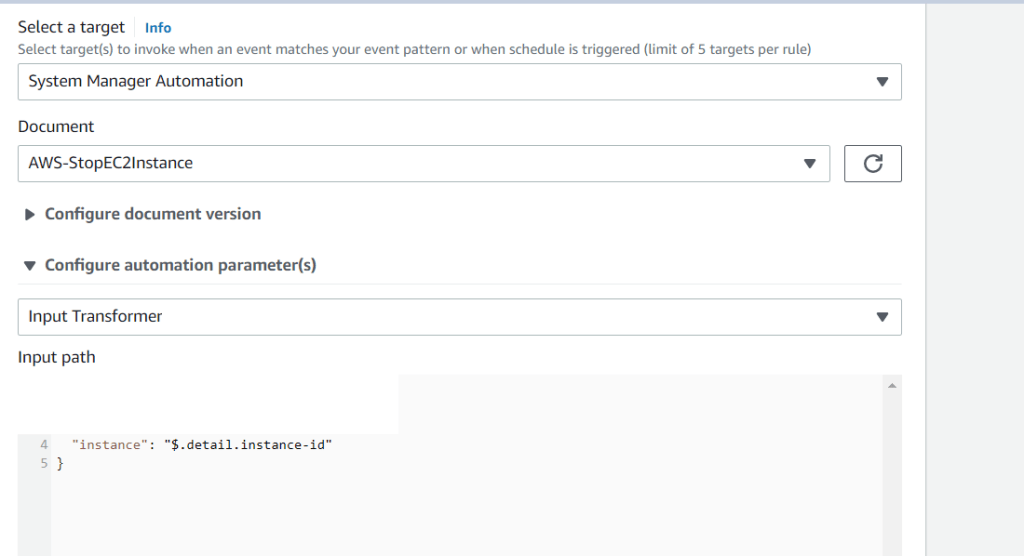

Select the target , In this case Automation document. Input transformer is used to filter out the data you wanted from the JSON (event JSON (in this case)
